At Ningbo Zhouqi Health Technology, we engineered the Zero Gravity 4D Massage Chair to solve a common problem: muscle tension. The most effective massages happen when the body is completely relaxed, which is why we prioritized the Zero Gravity posture.
This model lifts your legs to a position level with your heart, floating you into a state of deep calm and spinal decompression. While you float, our 4D intelligent mechanism takes over—controlling not just the speed, but the rhythm and penetration of the rollers to simulate a real masseuse. By stripping away unnecessary AI-driven extras and focusing on this core therapeutic synergy (Zero Gravity posture + 4D mechanism), we offer partners a chair that delivers profound relief at a strategic price point.
|

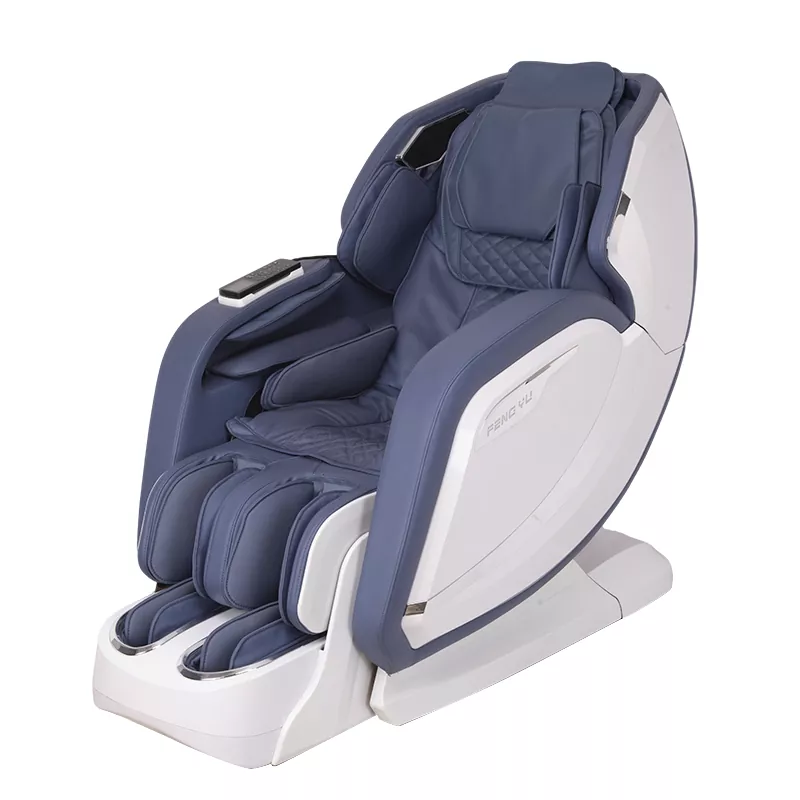

Zero Gravity 4D Massage Chair |
|
|
◆Product Parameter◆ |
|
|
Picture |
|
|
Model No. |
8610 |
|
Track Type |
SL track, Length 1350 mm |
|
Mechanism type |
4D |
|
◆FUNCTION DESCRIPTION◆ |
|
|

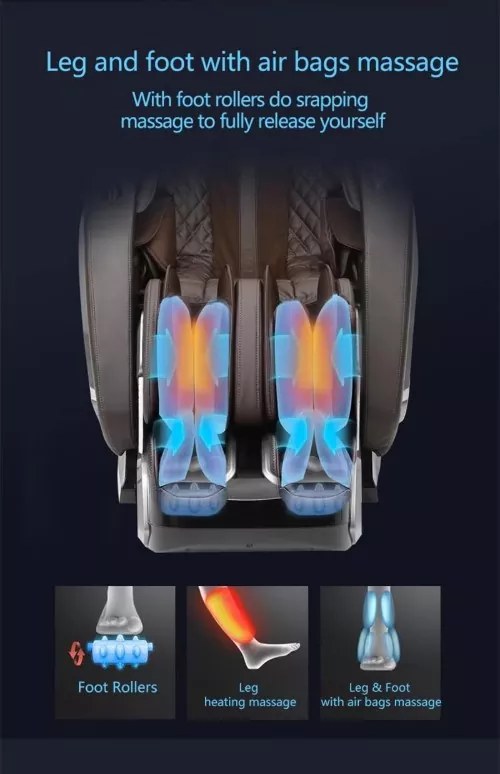

Calf Massage |
Calf airbag + roller massage |
|
Bottom foot Massage |
Three Rows foot Roller Massage |
|
Foot Extend Range |
Automatically Stretch Distance 130mm |
|
Leg Angle Adjustment |
Automatically Leg Lift Angle 10-70° （vertical ground） |
|

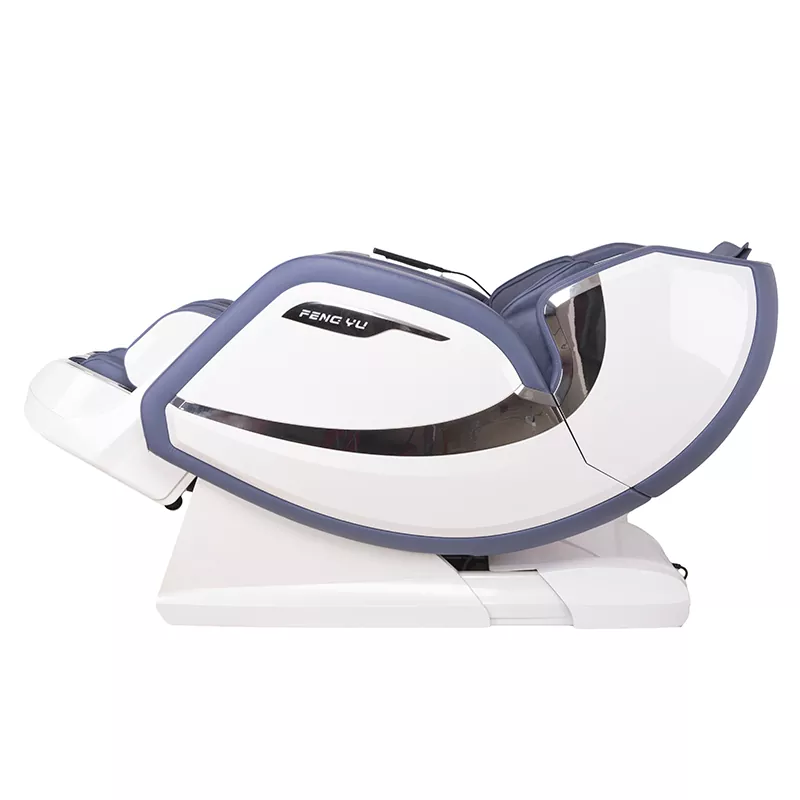

Zero Gravity |
Electric Adjustment Back Angle, maximum to 156.5° |
|

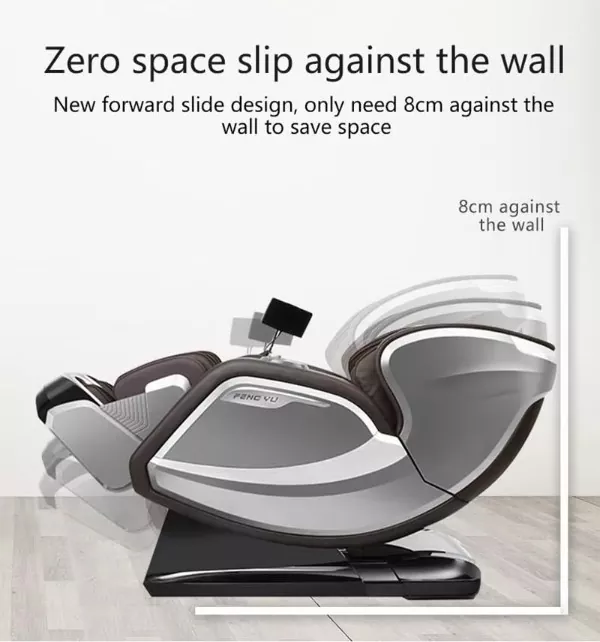

"0" Space |
Slip Against Wall 8CM |
|
Mechanism Function |
kneading, tapping, kneading & tapping, rolling shiatsu, 4D in & out massage |
|
Automatic Human Detection Function |
Accurately determine the position of the human body by electronic sensors |
|
AI Health Detection |
With |
|
Arm Roller Massage |
Without |
|
Music Player |
Bluetooth connect , music player |
|

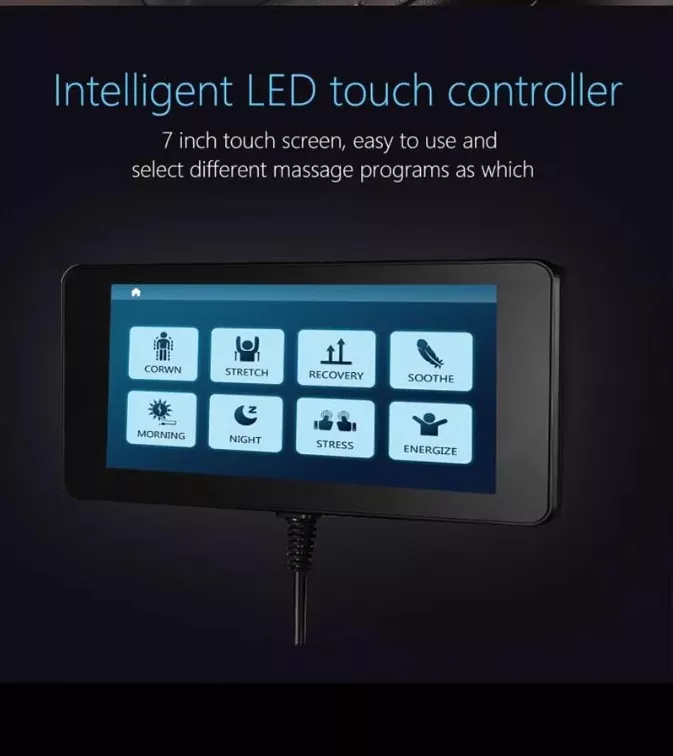

Controller |
7" LCD SCREEN (Language setting) |
|
Quick Access Button |
Knob control + button |
|
Charge |
Wireless charging |
|
Surface Treatment |
Piano paint shell |
|
Voice control |
With Voice control operation |
|

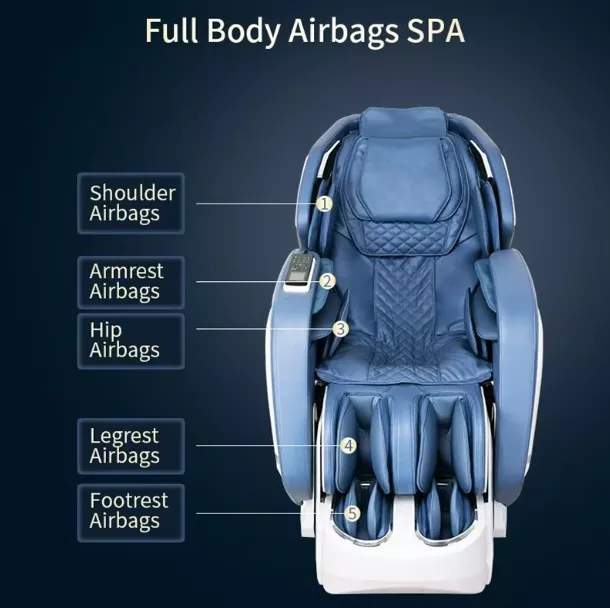

◆ Air Cells / QTY ◆ |
|
|
Shoulder Air Cells |
6 air cells , 2 valves |
|
Armrest Air Cells |
16 air cells , 4 valves |
|
Seat Position Air Cells |
4 air cells , 2 valves |
|
Leg Air Cells |
8 air cells , 2 valves |
|
Foot Air Cells |
12 air cells , 2 valves |
|
◆MASSAGE MODE ◆ |
|
|
Auto Mode |
24 kinds of automatic programs, suitable for different groups of people, with collection function, memorize your favorite programs |
|
Manual Mode |
Quick and private customization, very easy to set the massage program you want, with a collection function, so that the set program will not be lost, and you can use it next time. |
|
◆HEATING FUNCTION◆ |
|
|
Waist |
2 Pcs Hot Heating |
|
Foot |
4 Pcs Hot Heating |
|
◆SPECIFICATIONS◆ |
|
|
Standby Power |
<3W |
|
Rated Power |
200W |
|
Voltage |
AC110V/220V/240V |
|
Upright Size |
1520*810*1220mm |
|
Recline Size |
1720*810*890mm |
|
N.W. |
134KG |
|
Package |
Ctn: 1470*830*1120mm；G.W.: 164KG 40HQ：44PCS |

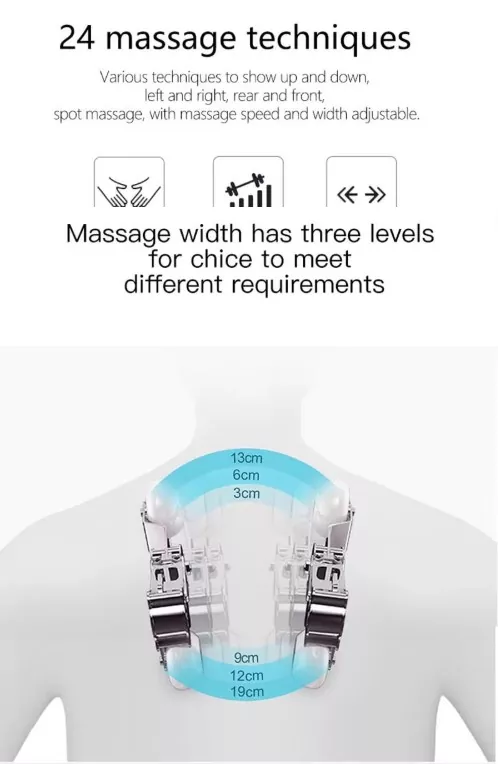

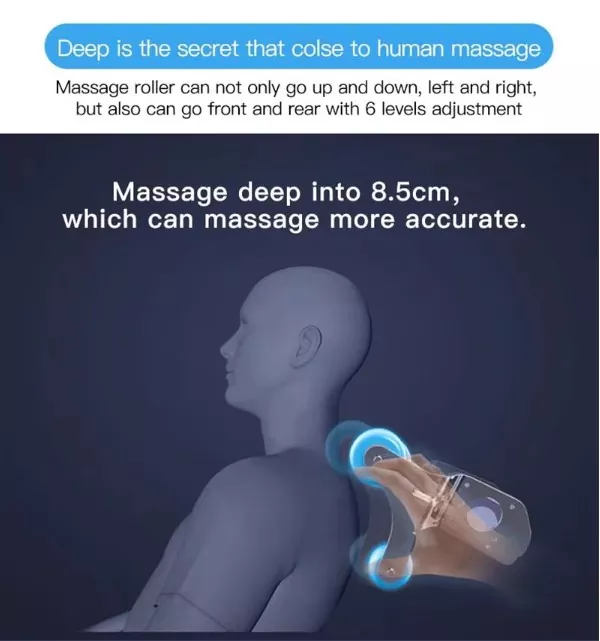

True 4D Massage Technology: Controls speed, width, rhythm, and penetration of the massage heads, simulating human hands for deep muscle relaxation.

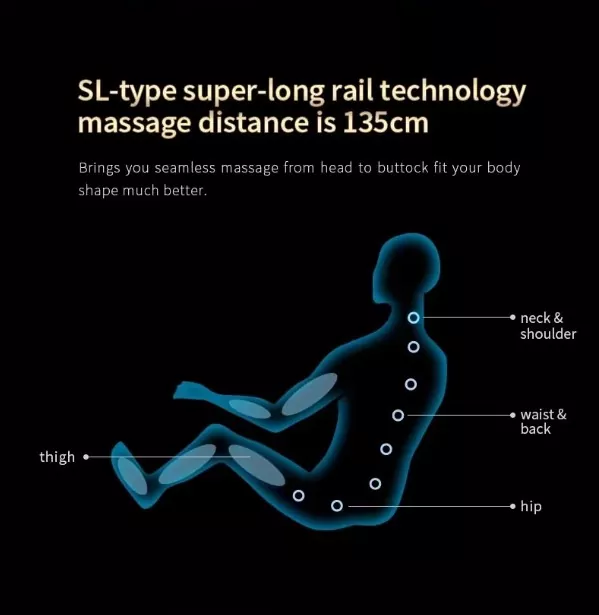

135cm SL Long Track: Follows the natural curve of the spine, covering from neck to glutes for full-body relief.
Full-Body Airbag Massage System: 36 air cells strategically placed across shoulders, arms, seat, legs, and feet for a soothing compression massage.
24 Auto Programs + Manual Mode: One-touch access to popular massage routines, plus full manual customization.
Foot Roller Massage: Triple-row foot rollers with optional heating to soothe tired feet.
Smart Control Options: 7-inch LCD touchscreen + button control; voice control optional.
Space-Saving Design: Requires only 8cm clearance from wall when fully reclined – ideal for small spaces.
Certifications: CE, RoHS, FCC; UL/ETL approved adaptor; ISO 9001 certified factory.
QC System: IQC (Incoming Quality Control), PQC (Producing Quality Control), IPQC (In-Process Quality Control), FQC (Final Quality Control).
|
Feature |
Zero Gravity4D Chair |
Typical 3D / Budget Chair |
|
Mechanism |
True 4D (speed, width, rhythm, penetration control) |
Fixed 2D/3D, no rhythm variation |
|
Track |
135cm SL Track (full spine coverage) |
Usually straight or short L-track (≤110cm) |
|
Airbag System |
36 air cells, full-body coverage |
20-30 cells, often missing arm/seat airbags |
|
Auto Programs |
24 Modes + Manual |
4-6 fixed modes |
|
Foot Massage |
Dual-row rollers + heating option |
Single-row rollers or airbags only |
|
Heating |
Waist heating included |
Often no heating or only at extra cost |
|
Control |
7" LCD touchscreen + optional voice |
Basic remote with small LED display |
|
Price |
Entry-level 4D pricing |
Comparable price but lower technology |
Installation Guide: Video instructions for unpacking and setup.
User Manual: Downloadable PDF with clear operation steps.
Troubleshooting: Quick reference for common issues (power, reset).
Customer Support: Email and WhatsApp support (response within 24h).

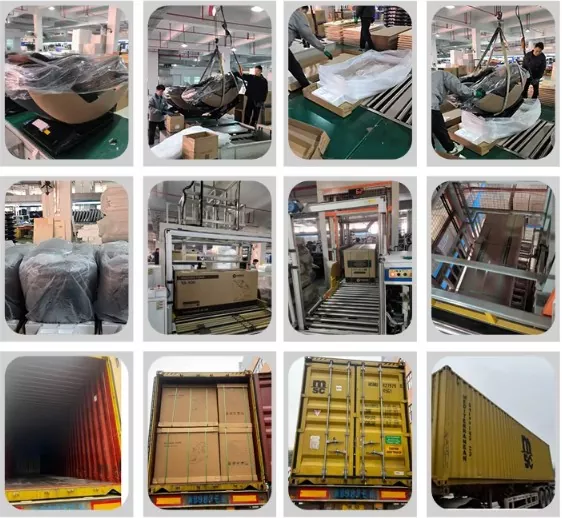

Packaging Dimensions: 1470 x 830 x 1120 mm
Gross Weight: 164 KG
Container Load: 44 PCS / 40HQ Container
Shipping Port: Ningbo, China
We offer basic customization (logo, packaging) at competitive MOQs.
Inquiry → Quotation → Sample Approval → Bulk Production → QC → Shipping → After-Sales
Q: How does the 4D mechanism in the Economic model compare to the Intelligent model?
A: The 4D mechanism is the same high-quality unit used in our Intelligent series. The Economic model omits the AI body scan and some premium features, but the massage experience remains deeply therapeutic.
Q: What is the power consumption?
A: Rated power is only 200W. A 15-minute session costs less than $0.03 in most countries.
Q: Can I get this chair with my own brand logo?
A: Yes, we offer OEM services for orders as low as 44 units. Custom colors and packaging are also available.
Q: How long does shipping take?
A: Sea freight to US/Europe: 25-35 days. Air freight for samples: 5-7 days.
Q: Is assembly required?
A: The chair comes mostly pre-assembled. You only need to attach the side panels (if any) and plug it in. A video guide is provided.
