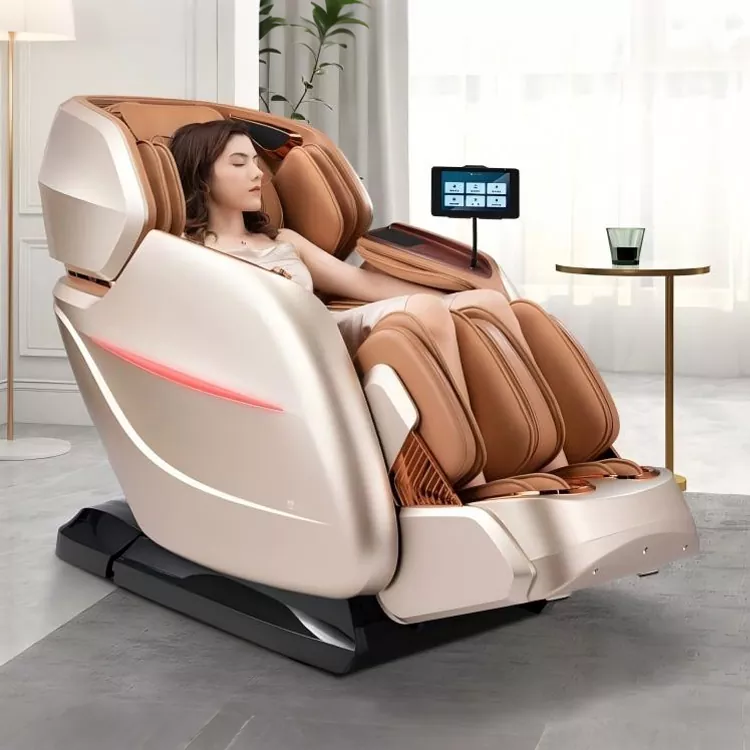

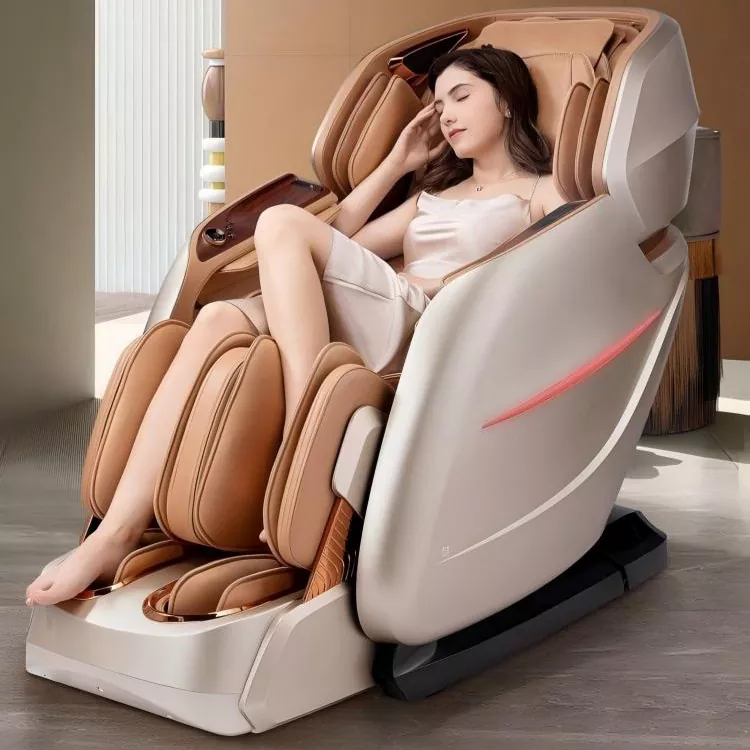

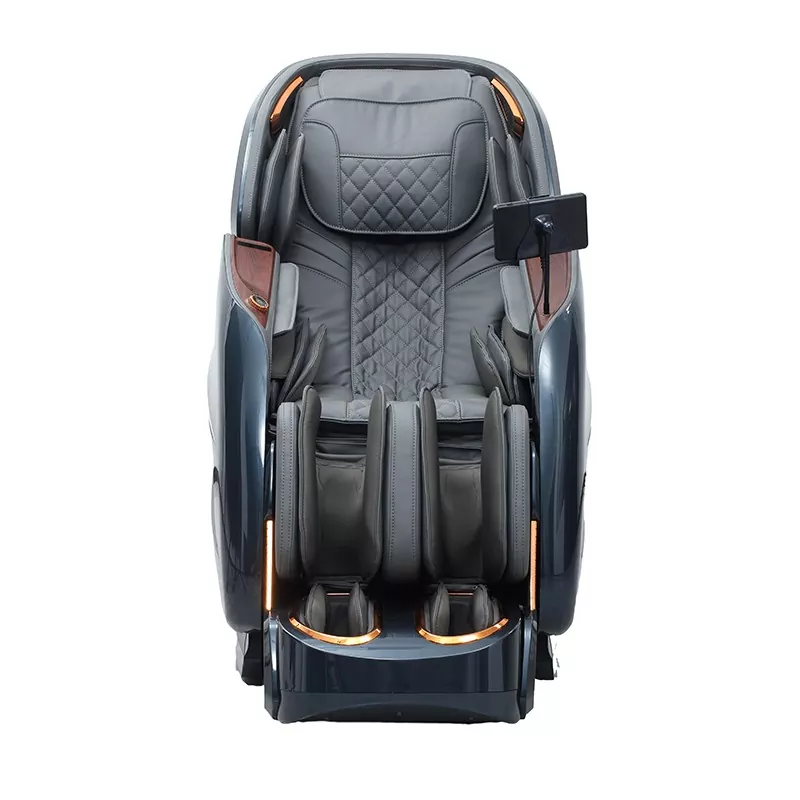

High End 4D Massage Chair

Our High End 4D Massage Chair is a high-tech health care device integrating ergonomic design, intelligent control and professional massage technology. It is designed to simulate the hand mechanisms of professional massage therapists, using internal electronic motors, gears, massage rollers and airbags to provide multi-position and multi-mode massage for the human body. Unlike traditional massage chairs that require manual operation by therapists, our electric massage chair can be used independently at any time, helping users relieve muscle tension, promote blood circulation and reduce fatigue. It is not only a functional health product, but also a perfect combination of home decoration, office comfort and commercial service, integrating practicality, aesthetics and technology to bring a professional and convenient massage experience to users in various scenarios.

Core Selling Points

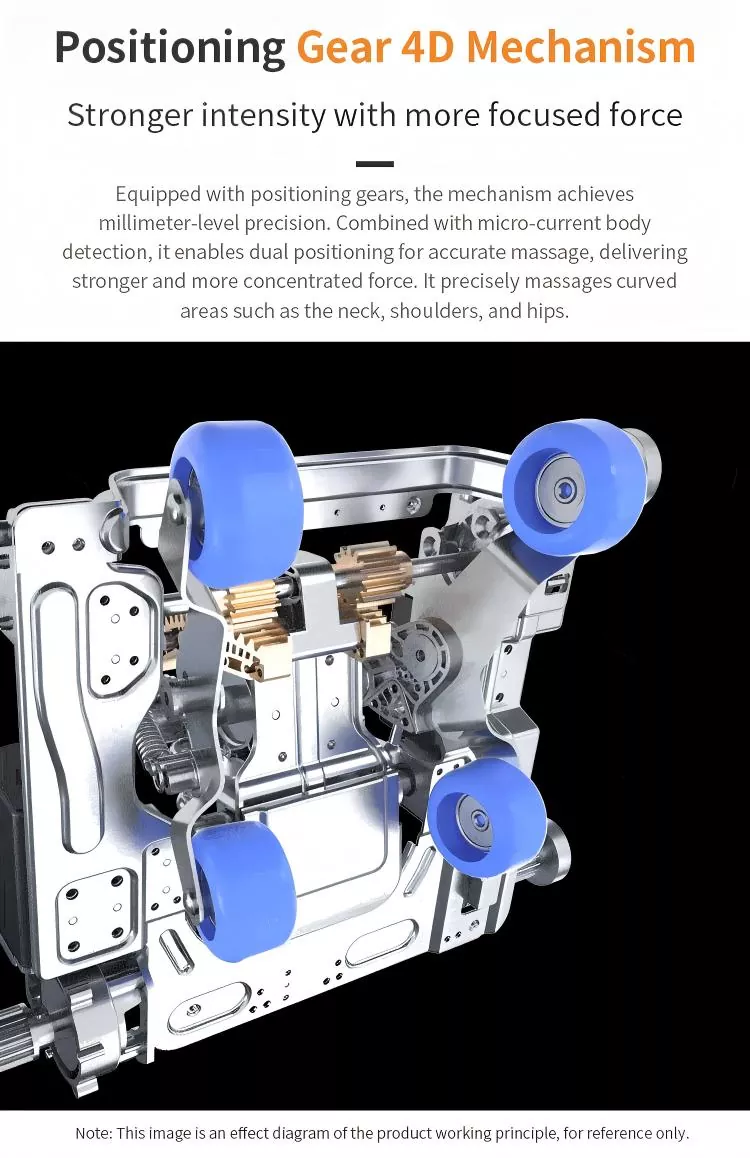

Positioning Gear 4D Mechanism : Millimeter-Level Force Matching

Equipped with positioning gears, the mechanism achieves millimeter-level precision. Combined with micro-current body detection, it enables dual positioning for accurate massage, delivering stronger and more concentrated force. It precisely massages curved areas such as the neck, shoulders, and hips.

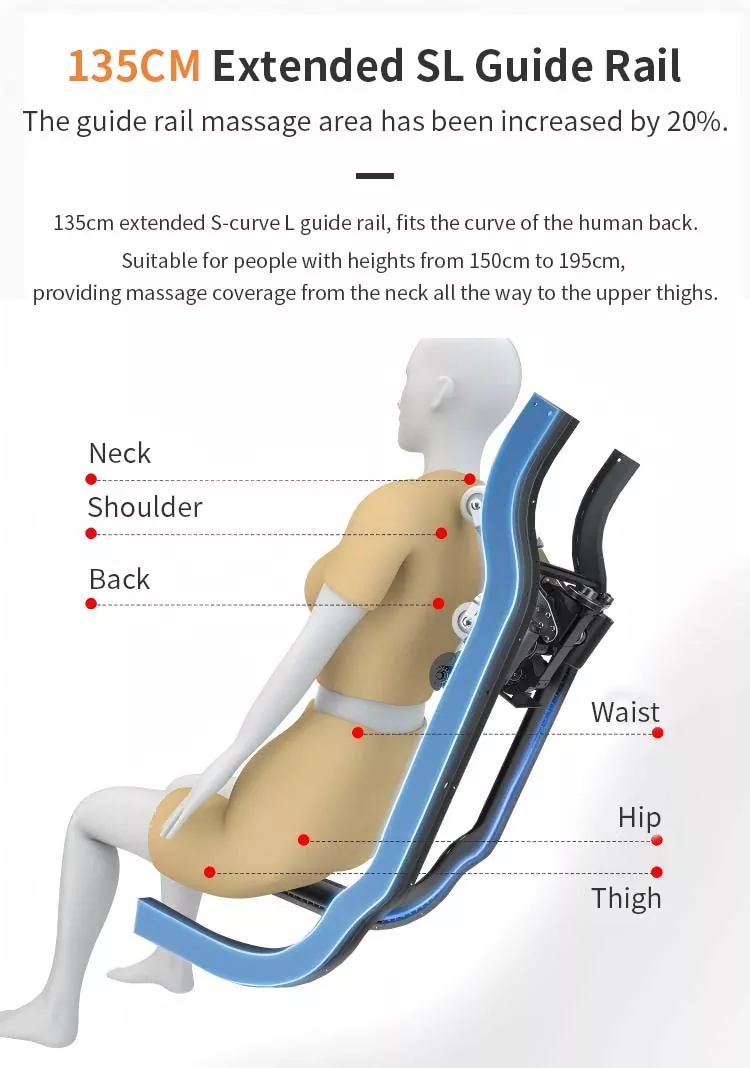

135CM Extended SL Guide Rail: Wider Massage Coverage

The 135cm extended curved SL guide rail fits the natural curve of the human back, providing full massage coverage from the neck to the upper thighs for users ranging from 150cm to 195cm in height.

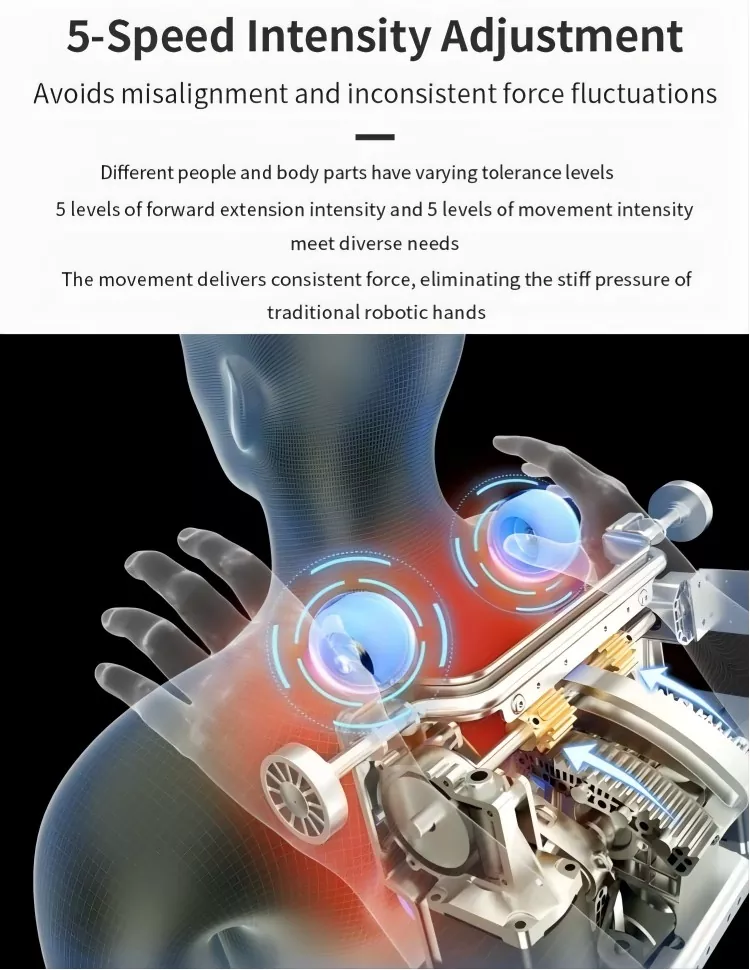

5- S peed I ntensity A djustment: A voids M isalignment and I nconsistent F orce F luctuations.

Different people and body parts have varying tolerance levels. With 5 levels of forward extension intensity and 5 levels of movement intensity, the massage chair can meet diverse needs. The movement delivers consistent force, eliminating the stiff pressure of traditional robotic hands.

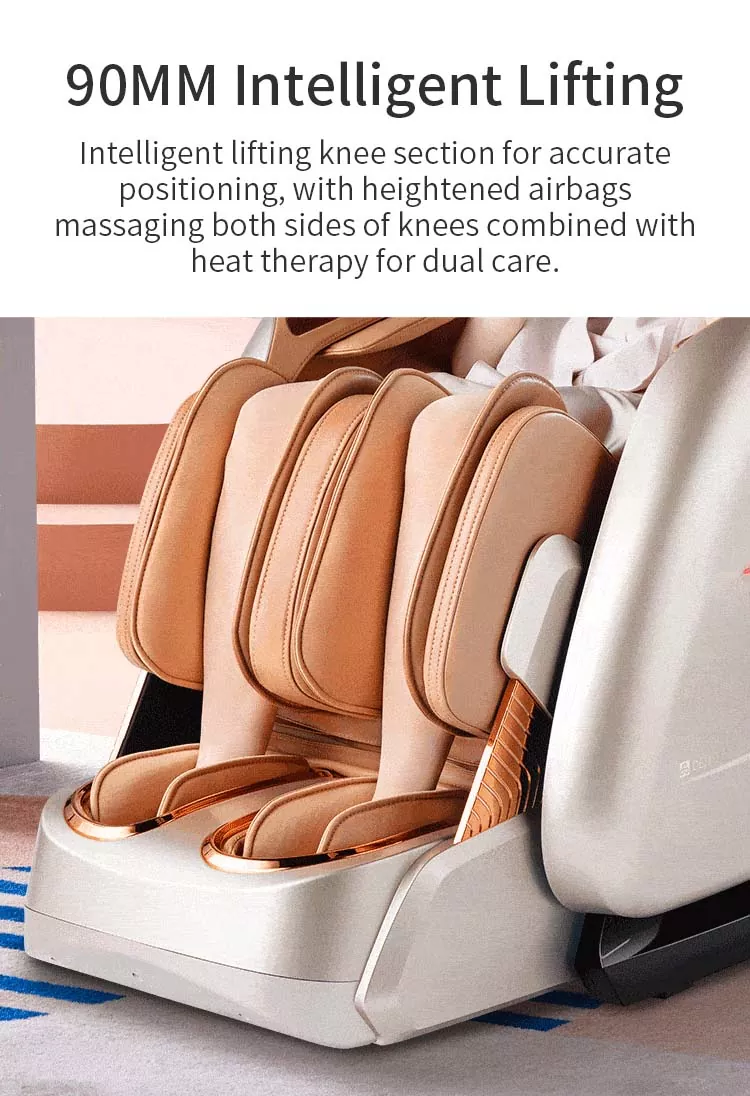

90MM Intelligent Lifting: Knee Position Adjustment

Features 90mm intelligent lifting for optimal knee positioning. Raised airbags massage both sides of the knees with heat compression for dual care.

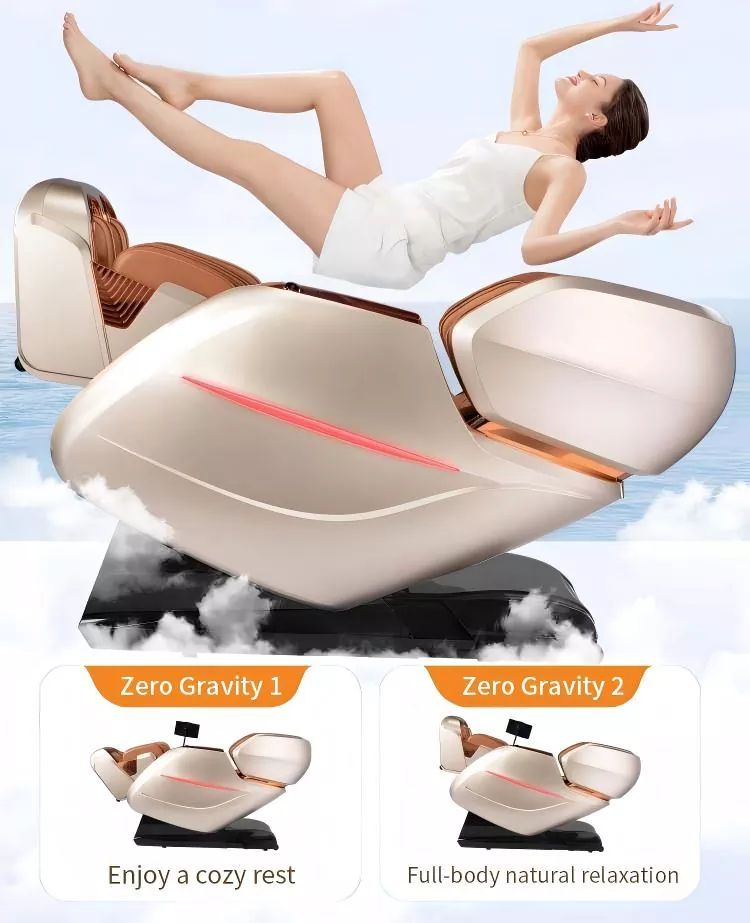

One-Touch Zero-Gravity Translation

One-touch zero-gravity massage allows you to experience a weightless lying posture even in limited spaces.

Technical Specifications

Configuration table
Name	High End 4D Massage Chair
Item No.	FY8510A
Rail Type	SL, length1350mm
mechanism type	4D（stretch range 8 cm）
Leather	PU material, sofa-like seating comfort, thickened sponge
FUNCTION DESCRIPTION
Calf Massage	Leg Air Cells Massage + Knee Heating
Leg Belly Massage	Calf Bump Roller Massage
Footrest Massage	Three Rows of Roller Massage
Additional Leg Function	Automatically Retractable To Knee, Completely Cover With Heating
Footrest Stretch Range	Automatically Stretch Distance 130mm
Calf Stretch Range	Automatically Stretch Distance 90mm
Leg Angle Adjustment	Automatically Leg Lift Angle 10-70° （vertical ground）
Zero Gravity	Electric Adjustment Back Angle, maximum to 156.5°
"0" Space	Slip Against Wall 8CM
mechanism Type	kneading, knocking, tapping, shiatsu, massage
Automatic Human Detection Function	Accurately determine the position of the human body by electronic sensors
Ambient Light	High Quality Speaker & Bluetooth music
Remote Control	7" LCD SCREEN
Short Cut	Knob control+button
Charge	Wireless charging
Surface Treatment	Piano Baking Paint
Air Cells / QTY
Shoulder Air Cells	4 Pcs Shoulder Air Cells
Armrest Air Cells	16 Pcs Armrest  Air Cells
Seat Position Air Cells	6 Pcs Seat Position Air Cells
Leg Air Cells	16 Pcs Leg  Air Cells
Foot Air Cells	12 Pcs Leg  Air Cells
MASSAGE MODE
Auto Mode	24 Auto modes，suiting all sorts of different crowd, it  have "FAVORITES" function, you can easily choose the program
Manual Mode	Quick manual mode, easily to set the OEM massage program which you want, and add to "FAVORITES",  you can choose the same program in the "FAVORITES".
HEATING FUNCTION
Waist	2 Pcs Hot Heating
Leg	4 Pcs Hot Heating
Foot	4 Pcs Hot Heating
POWER	<3W
Rated power	200W
Voltage	AC110V/220V/240V
Size (Upright)	L 1625 * W 820 * H 1220 MM
Size (Recline)	L 1800 * W 820 * H 980 MM
N.W.	123KG
Package One: 1 PCS/CTN	L 1480* W 845* H 1160 mm；G.W.: 138KG 40HQ:44PCS 20GP:20PCS
Separately Package: 1 PCS/ 3 CTN	Carton 1 (Body) Size: L 1580 * W 750 * H900 MM； G.W.: 96KG；N.W.: 76KG Carton 2 (Armrest) Size: L 1180* W 830 * H 400 MM；G.W.: 27KG；N.W.: 20KG Carton 3 (Footrest) Size: L 590* W 560* H 640 MM；G.W.: 32KG；N.W.: 27KG 40HQ:39PCS 20GP:15PCS

Application Areas & Use Cases

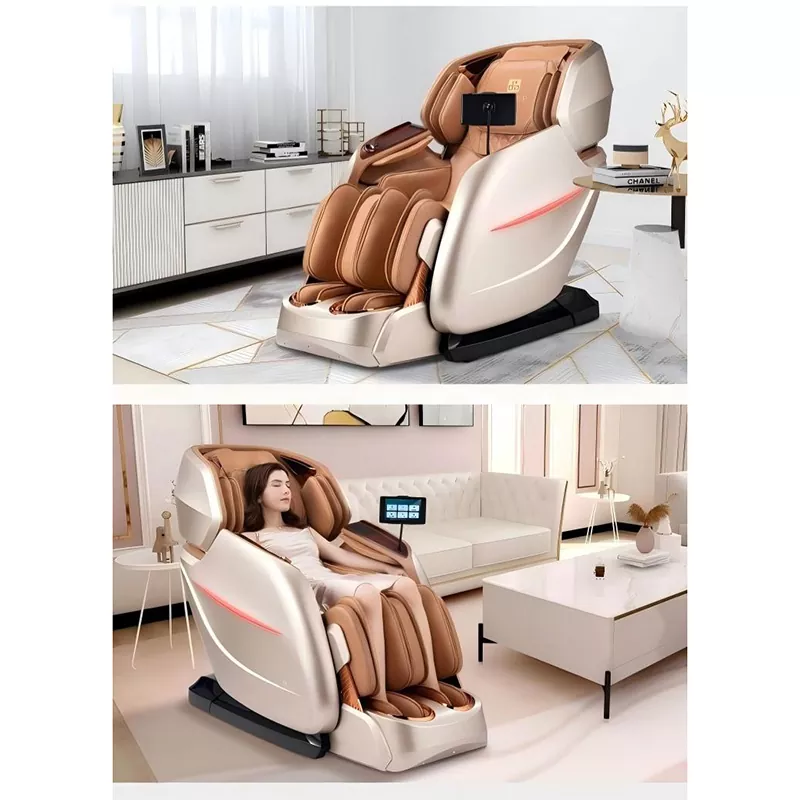

Home Wellness : Relaxation after work or exercise.

Office & Corporate Spaces : Employee wellness programs, stress relief.

Spa & Health Centers : Premium client services, full-body therapy.

Medical & Rehabilitation : Muscle recovery and pain relief support (with proper guidance).

Hotel : meet the needs of guests to relieve travel fatigue

Certifications & Quality Assurance

ISO9001 : Quality management system compliance.

CE & FCC : Safety and electromagnetic compatibility standards.

ROHS : Environmentally friendly materials.

FDA & ETL (for select models) : Ensures safety for therapeutic use.

Continuous QC : Each chair undergoes rigorous testing before shipment.

After-Sales Service & Support

We have a complete spare parts supply system, which can provide original spare parts in a timely manner, ensuring that the maintenance work can be carried out smoothly, and the spare parts price is open and transparent.

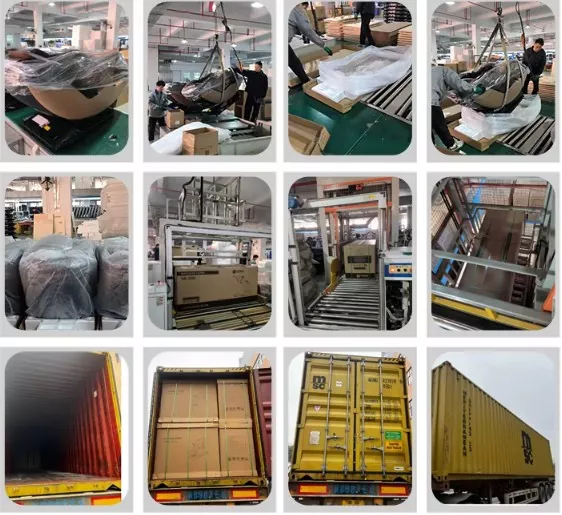

Packaging & Shipping

Packaging:

We offer two packaging methods: one is full assembly packaging, and the other is split packaging, which packs the product into three separate parts: the main body, armrests, and footrest.

*Full assembly：

Weight: G.W.: 138KG; N.W.: 123KG

Size: L 1480* W 845* H 1160 mm

QTY: 40HQ: 44PCS; 20GP: 20PCS

* Separately Package ：

Carton 1 (Body) Size: L 1580 * W 750 * H 900 MM； G.W.: 96KG；N.W.: 76KG
Carton 2 (Armrest) Size: L 1180* W 830 * H 400 MM；G.W.: 27KG；N.W.: 20KG
Carton 3 (Footrest) Size: L 590* W 560* H 640 MM；G.W.: 32KG；N.W.: 27KG

QTY：40HQ: 39PCS; 20GP: 15PCS

Shipping:

Most of our shipments are by sea, and we quote on an FOB NINGBO basis.

Samples, Warranty & Returns

Sample:

Sample Supply:  We provide sample supply services for customers who need to test the product quality and experience the product function. Customers can apply for samples, and we will send the samples to the customer's designated address after confirming the sample fee and shipping cost.

Sample Fee: The sample fee is calculated according to the product model and configuration.

Sample Delivery Time: The sample delivery time is 15-20 working days

Warranty&Returns:

We offer a 1-year warranty, covering non-human performance failures.

Customization & Process (OEM/ODM)

Customization

We provide professional OEM/ODM customization services, focusing on meeting the personalized needs of customers, and the customization scope includes:

Product Appearance Customization: Color customization, LOGO printing, appearance design optimization, etc.

Manual Customization: Customize the product manual.

Process:

Demand Communication → Program Design → Sample (If the customer requires it) → Mass Production → Quality Inspection and Delivery → After-Sales

High-Intent Buyer Questions

Q: What is the difference between 4D core and 3D core? Is the massage effect very different?

A: The difference is significant. The 3D core mainly moves in three-dimensional space (up and down, left and right, front and back), while the 4D core adds the fourth dimension - "time" or "speed" intelligent coordinated control on the basis of 3D. The massage experience is smoother and more in line with the manual massage rhythm, which can deeply penetrate the muscle layer and relieve soreness better than the 3D core.

Q: Can the massage chair be used by the elderly and children? Is it safe?

A: It is not recommended for children and the elderly to use casually. Children are in the period of physical development, so it is not recommended to use the massage chair. For the elderly, they can only use it under supervision; if the elderly have heart disease or other disease, it is recommended to consult a doctor first before considering whether to use it.

Q: How to clean and maintain the massage chair daily to extend its service life?

A: Daily cleaning is simple: wipe the surface fabric with a soft damp cloth (avoid sharp tools to prevent scratching), and dry it in time after cleaning to prevent moisture. It is not recommended to use strong corrosive cleaning agents (such as bleach, detergent).
