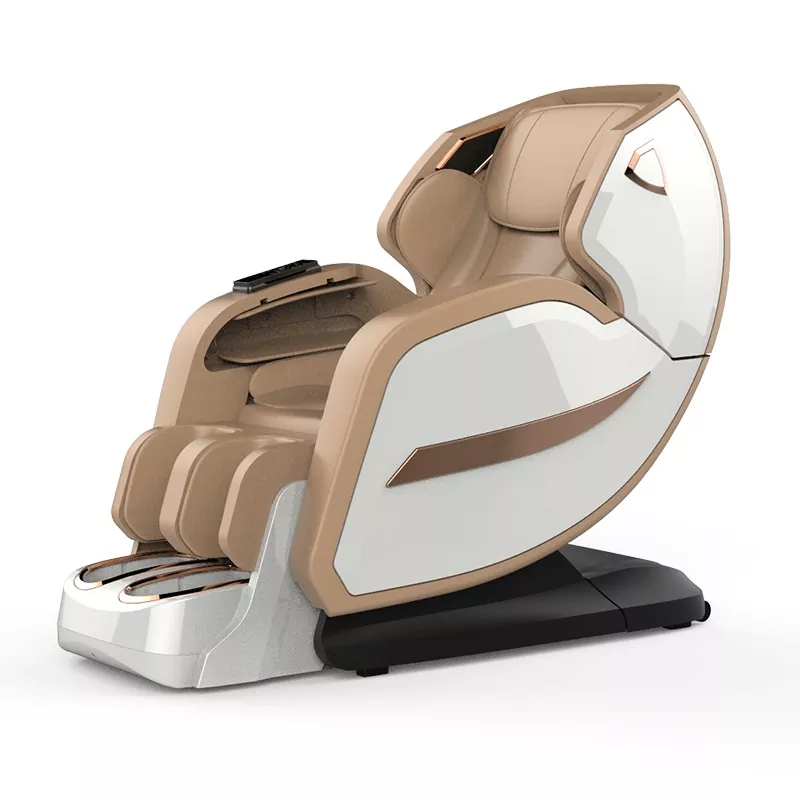

The Economic 4D Massage Chair is a strategically engineered value solution from Ningbo Zhouqi Health Technology Co., Ltd. As a professional massage chair manufacturer and supplier in China, we developed this chair to deliver the core benefits of 4D massage technology at an accessible price point. While it features the same high-quality 4D mechanism found in our premium models, it focuses on essential functionality without the complexity of AI-driven extras. The 4D intelligent mechanism goes deeper than traditional massage: it controls not only the speed and width, but also the rhythm and penetration of every stroke — just like our premium models, at a fraction of the cost.
|

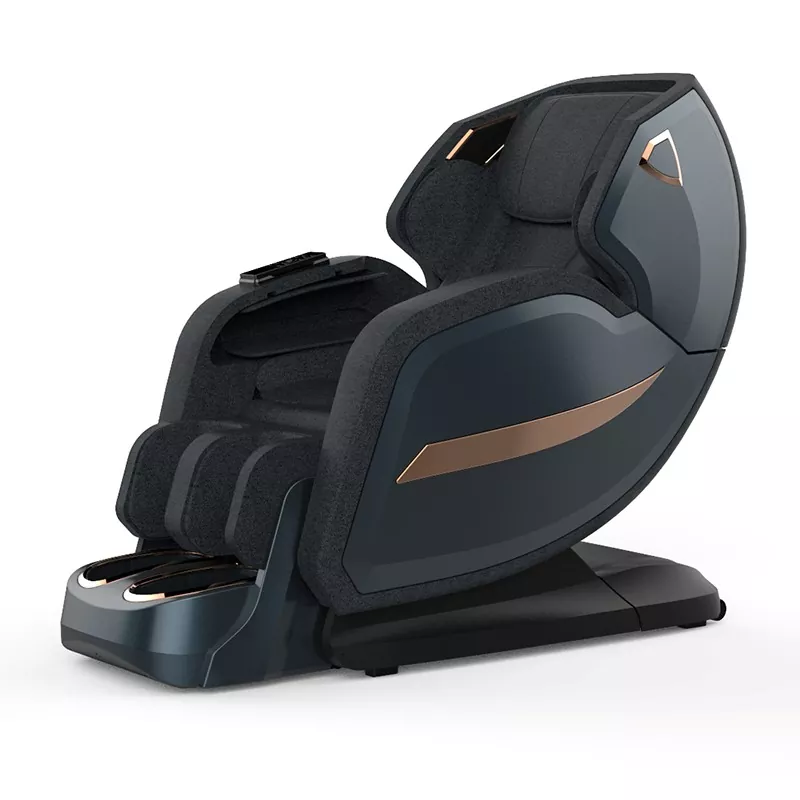

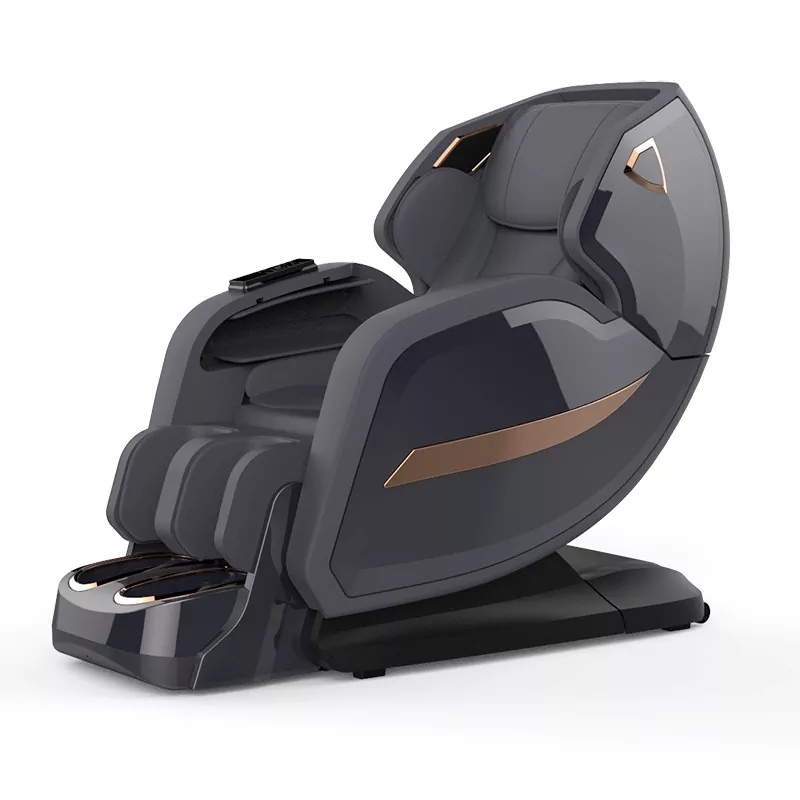

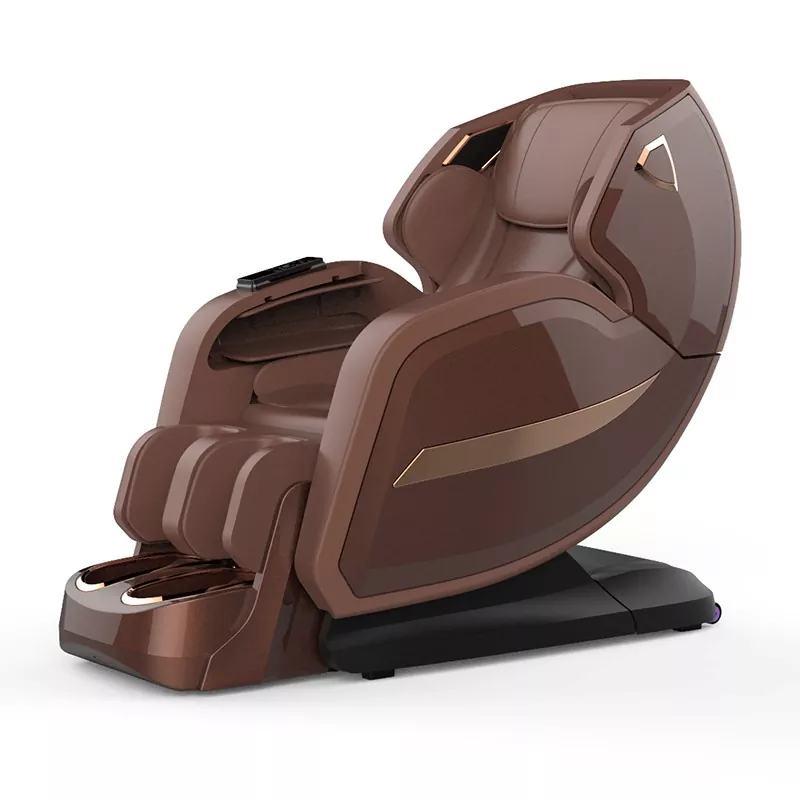

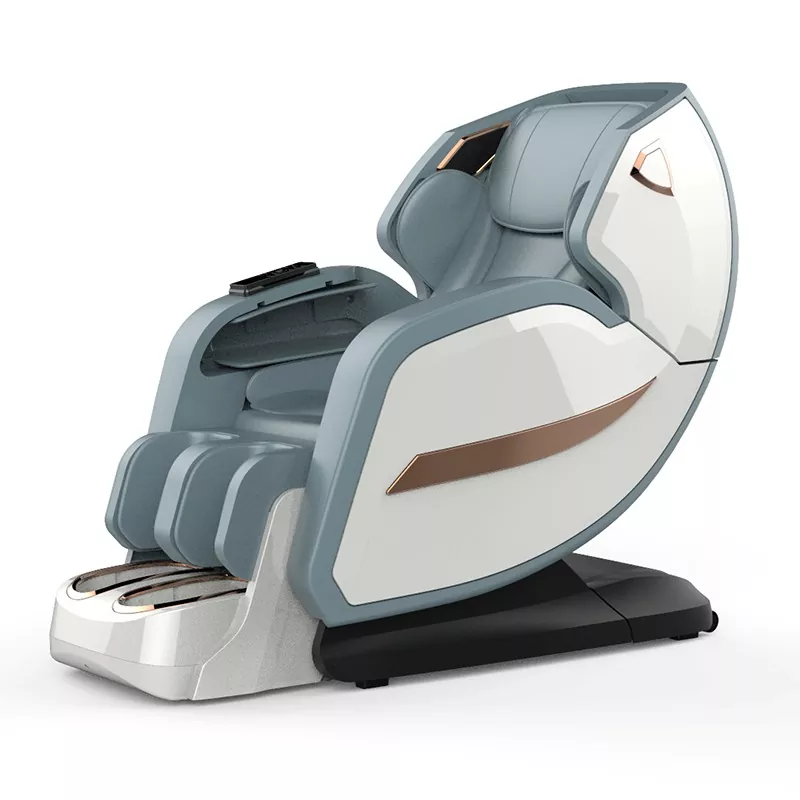

Economic 4D Massage Chair |
|
|
◆Product Parameter◆ |
|
|
Picture |
|
|
Model No. |
8600 |
|
Track Type |
SL track, Length 1350 mm |
|
Mechanism type |
4D |
|
◆FUNCTION DESCRIPTION◆ |
|
|
Calf Massage |
Calf airbag + roller massage |
|
Bottom foot Massage |
Three Rows foot Roller Massage |
|
Foot Extend Range |
Automatically Stretch Distance 130mm |
|
Leg Angle Adjustment |
Automatically Leg Lift Angle 10-70° （vertical ground） |
|
Zero Gravity |
Electric Adjustment Back Angle, maximum to 156.5° |
|
"0" Space |
Slip Against Wall 8CM |
|
Mechanism Function |
kneading, tapping, kneading & tapping, rolling shiatsu, 4D in & out massage |
|
Automatic Human Detection Function |
Accurately determine the position of the human body by electronic sensors |
|
AI Health Detection |
With |
|
Arm Roller Massage |
Without |
|
Music Player |
Bluetooth connect , music player |
|
Controller |
7" LCD SCREEN (Language setting) |
|
Quick Access Button |
Knob control + button |
|
Charge |
Wireless charging |
|
Surface Treatment |
Piano paint shell |
|
Voice control |
With Voice control operation |
|
◆ Air Cells / QTY ◆ |
|
|
Shoulder Air Cells |
6 air cells , 2 valves |
|
Armrest Air Cells |
16 air cells , 4 valves |
|
Seat Position Air Cells |
4 air cells , 2 valves |
|
Leg Air Cells |
8 air cells , 2 valves |
|
Foot Air Cells |
12 air cells , 2 valves |
|
◆MASSAGE MODE ◆ |
|
|
Auto Mode |
24 kinds of automatic programs, suitable for different groups of people, with collection function, memorize your favorite programs |
|
Manual Mode |
Quick and private customization, very easy to set the massage program you want, with a collection function, so that the set program will not be lost, and you can use it next time. |
|
◆HEATING FUNCTION◆ |
|
|
Waist |
2 Pcs Hot Heating |
|
Foot |
4 Pcs Hot Heating |
|
◆SPECIFICATIONS◆ |
|
|
Standby Power |
<3W |
|
Rated Power |
200W |
|
Voltage |
AC110V/220V/240V |
|
Upright Size |
1520*810*1220mm |
|
Recline Size |
1720*810*890mm |
|
N.W. |
134KG |
|
Package |
Ctn: 1470*830*1120mm；G.W.: 164KG 40HQ：44PCS |

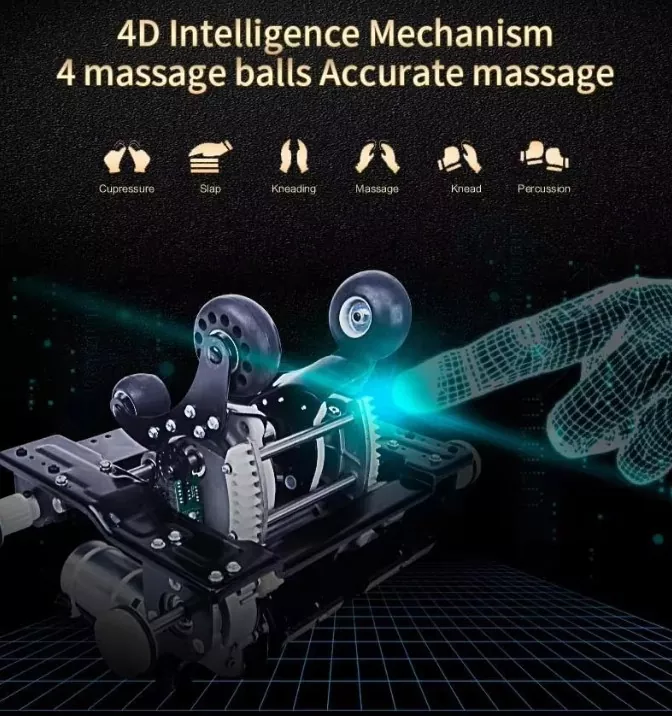

True 4D Massage Technology: Controls speed, width, rhythm, and penetration of the massage heads, simulating human hands for deep muscle relaxation.

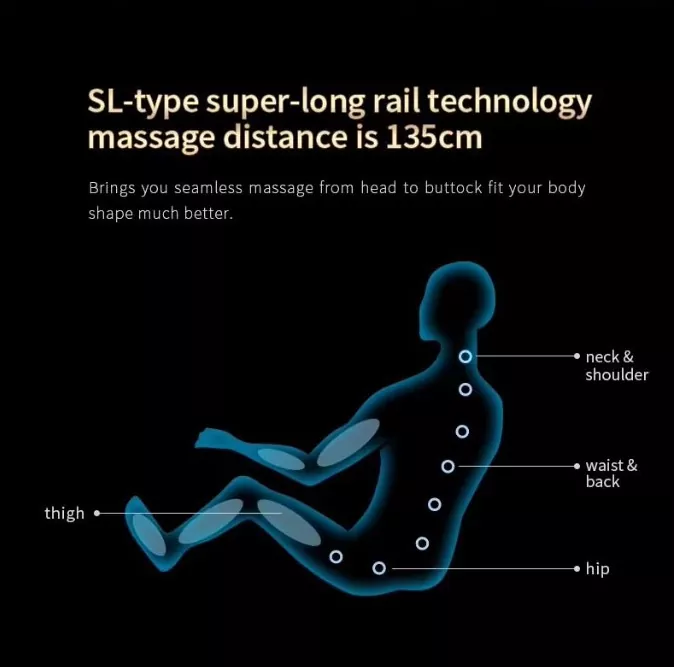

135cm SL Long Track: Follows the natural curve of the spine, covering from neck to glutes for full-body relief.

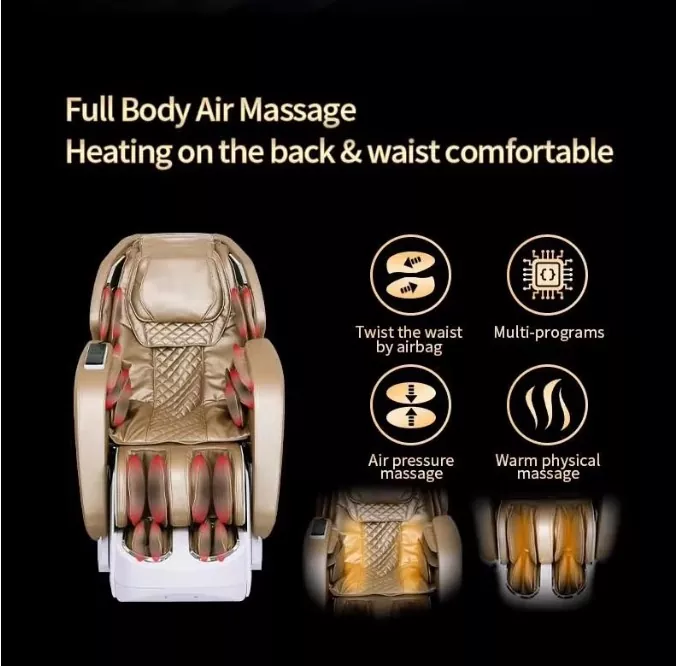

Full-Body Airbag Massage System: 36 air cells strategically placed across shoulders, arms, seat, legs, and feet for a soothing compression massage.
Zero Gravity Recline: Relax in a weightless position with a maximum recline angle of 156.5°.

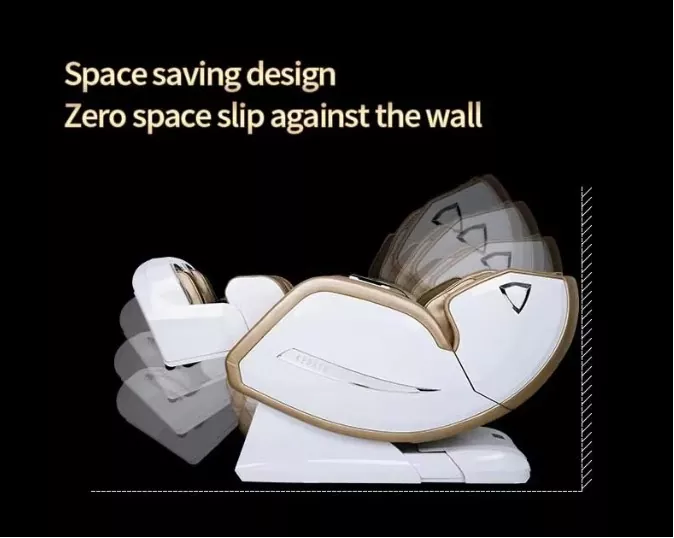

Space-Saving Design: Requires only 8cm clearance from wall when fully reclined – ideal for small spaces.

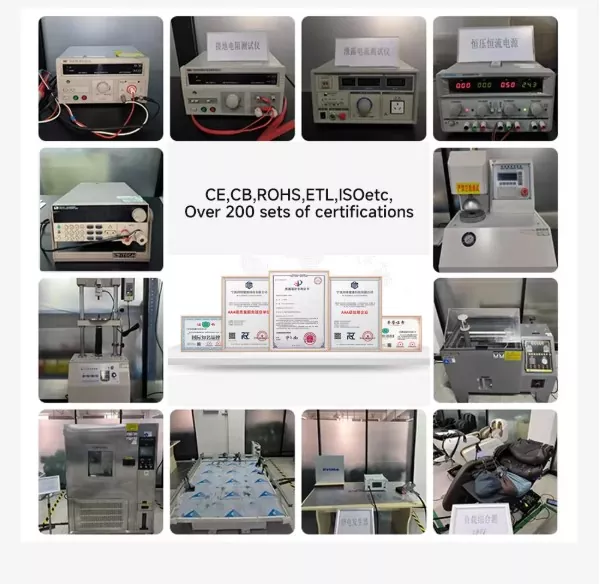

Certifications & Quality AssuranceCertifications: CE, RoHS, FCC; UL/ETL approved adaptor; ISO 9001 certified factory.
QC System: IQC (Incoming Quality Control), PQC (Producing Quality Control), IPQC (In-Process Quality Control), FQC (Final Quality Control).

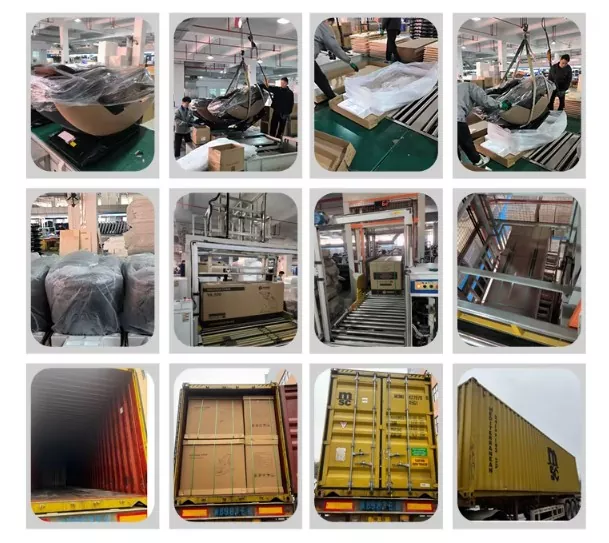

Packaging Dimensions: 1470 x 830 x 1120 mm
Gross Weight: 164 KG
Container Load: 44 PCS / 40HQ Container
Shipping Port: Ningbo, China
We offer basic customization (logo, packaging) at competitive MOQs.
Inquiry → Quotation → Sample Approval → Bulk Production → QC → Shipping → After-Sales
Q: How does the 4D mechanism in the Economic model compare to the Intelligent model?
A: The 4D mechanism is the same high-quality unit used in our Intelligent series. The Economic model omits the AI body scan and some premium features, but the massage experience remains deeply therapeutic.
Q: What is the power consumption?
A: Rated power is only 200W. A 15-minute session costs less than $0.03 in most countries.
Q: Can I get this chair with my own brand logo?
A: Yes, we offer OEM services for orders as low as 44 units. Custom colors and packaging are also available.
Q: How long does shipping take?
A: Sea freight to US/Europe: 25-35 days. Air freight for samples: 5-7 days.
Q: Is assembly required?
A: The chair comes mostly pre-assembled. You only need to attach the side panels (if any) and plug it in. A video guide is provided.
