The Airbag 3D Massage Chair combines a 3D massage mechanism with multi-zone air compression to provide adjustable massage across the upper body, arms, legs, and feet. With an SL-track, automatic body detection, zero-gravity reclining, 24 automatic programs, and adjustable air massage intensity, it is designed for distributors, wholesalers, and OEM/ODM buyers looking for configurable massage chair solutions.
The Airbag 3D Massage Chair uses a 3D massage mechanism with four massage balls to follow the body's curves along the 130cm SL-track. The rollers can perform kneading, tapping, shiatsu, and other massage movements, while the air compression system works across selected body areas.
Air cells are positioned around the shoulders, arms, legs, and feet to provide intermittent compression. The air pressure can be adjusted according to user preference, allowing operators and end users to select different massage intensities.
This combination allows the mechanical massage system and air compression system to operate as complementary functions rather than relying on a single massage method.
Multiple air cells provide compression around the shoulders, arms, legs, and feet. Different zones can be activated during massage programs, while adjustable air intensity allows users to select a preferred pressure level.
The 3D mechanism moves along a 130cm SL-track and adjusts its movement in relation to the body's contours. This configuration supports several massage techniques, including kneading, tapping, shiatsu, and knocking.

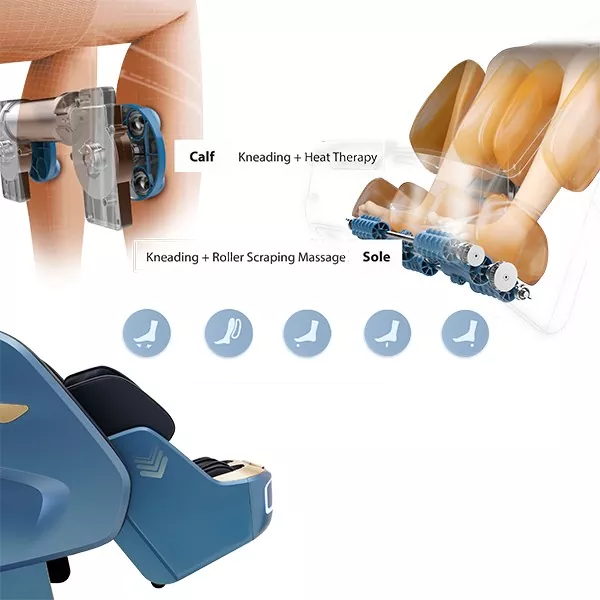

The lower-body system combines calf air compression, calf kneading, and three rows of foot rollers. The footrest can also automatically extend by up to 130mm, while the leg angle can be adjusted from 11° to 99°.
Electronic sensors detect the user's body position and help align the massage mechanism with the intended massage area. This function supports more consistent positioning for users with different body sizes.
The backrest can be electrically adjusted to a maximum angle of 153°. The reclining position changes the user's posture during massage and can be combined with the leg lift function for a more relaxed seating position.
The "0" Space design allows the chair to slide to approximately 5cm from the wall. This configuration can help reduce installation clearance requirements in homes, offices, and commercial wellness spaces.
The chair includes a 7-inch LCD screen and shortcut controls for daily operation. Users can select from 24 automatic massage programs or use manual settings to adjust the massage experience according to the target area and preferred mode.
The manual mode also supports customized massage programs that can be saved under the Favorites function. USB charging and Bluetooth connectivity add practical functions for longer relaxation sessions.
Heating elements are integrated into the waist and foot areas. The system provides localized warmth that can be used together with the massage functions according to the selected program.
The air massage system uses multiple air cells distributed across different body zones. Adjustable pressure gives users greater control over the compression level during operation.
|
Configuration table |
|
|
Picture |

|
|
Name |
Airbag 3D Massage Chair |
|
Item No. |
1900 |
|
Rail Type |
SL track, 130cm in length, fit the curve |
|
mechanism type |
3D massage mechanism (4 massage balls) |
|
FUNCTION DESCRIPTION |
|
|
Calf Massage |
Leg Air Cells Massage +Calf Kneading Massage |
|
Footrest Massage |
Three Rows of Roller Massage |
|
Footrest Stretch Range |
Automatically Stretch Distance 130mm |
|
Leg Angle Adjustment |
Automatically Leg Lift Angle 11-99° （vertical ground） |
|
Zero Gravity |
Electric Adjustment Back Angle, maximum to 153° |
|
"0" Space |
Slip Against Wall 5CM |
|
Automatic Human Detection Function |
Accurately determine the position of the human body by electronic sensors |
|
Remote Control |
7" LCD SCREEN |
|
Short Cut |
Knob control+button |
|
Charge |
USB charging |
|
Surface Treatment |
Piano Baking Paint + PU leather |
|
Air Cells / QTY |
|
|
Shoulder Air Cells |
2 Pcs Shoulder Air Cells |
|
Armrest Air Cells |
4 Pcs Armrest Air Cells |
|
Leg Air Cells |
4 Pcs Leg Air Cells |
|
Foot Air Cells |
12 Pcs Leg Air Cells |
|
MASSAGE MODE |
|
|
Auto Mode |
24 Auto modes，suiting all sorts of different crowd, it have "FAVORITES" function, you can easily choose the program |
|
Manual Mode |
Quick manual mode, easily to set the OEM massage program which you want, and add to "FAVORITES", you can choose the same program in the "FAVORITES". |
|
HEATING FUNCTION |
|
|
Waist |
2 Pcs Hot Heating |
|
Foot |
4 Pcs Hot Heating |
|
POWER |
<3W |
|
Rated power |
130W |
|
Voltage |
AC110V/220V/240V |
|
Size (Upright) |
1530*715*1140mm |
|
Size (Recline) |
1620*715*850mm |
|
N.W. |
94KG |
|
Package One: 1 PCS/1 CTN |
1820*750*870mm；G.W.: 107KG |
The chair is suitable for both personal and commercial environments where users need access to on-demand massage services.
Home: Living rooms, bedrooms, home gyms, and dedicated wellness spaces.
Office: Employee lounges, executive offices, and corporate relaxation areas.
Commercial Wellness: Spas, beauty salons, health clubs, rehabilitation centers, and other wellness facilities.
ZHOUQI applies quality control procedures throughout production, including incoming material inspection, functional testing, safety checks, and final product inspection. Each chair is tested before shipment to verify the operation of the massage mechanism, air compression system, and control functions.
The product and manufacturing system are supported by certifications and management standards including CE, FDA, RoHS, ISO9001, ISO13485, and ETL, subject to the applicable product configuration and target market requirements.
ZHOUQI provides technical guidance and product documentation for installation, operation, maintenance, and troubleshooting. Original spare parts can also be supplied for maintenance requirements.
During the warranty period, spare parts related to covered product quality issues are provided according to the applicable warranty terms. Damage caused by improper use, unauthorized modification, accidents, natural disasters, or other external factors is excluded from standard warranty coverage.
The Airbag 3D Massage Chair is packed as one chair per carton for export transportation. The standard packaging information is 1820 × 750 × 870mm, with a gross weight of 107kg and a net weight of 94kg.
Up to 56 units can be loaded into a 40HQ container based on the stated packaging configuration. ZHOUQI mainly supports sea transportation and can quote on an FOB Ningbo basis.
ZHOUQI supports OEM/ODM projects for distributors, wholesalers, importers, and private-label brands. Depending on project requirements, customization can cover product appearance, colors, branding, packaging, manuals, plugs, and selected massage program configurations.
The typical project process includes requirement confirmation, customization proposal, prototype development, sample evaluation, mass production, final inspection, and shipment.
Yes. The air massage intensity is adjustable, allowing users to select different compression levels according to their preferences and the selected massage program.
Yes. ZHOUQI provides OEM/ODM support for qualified projects. Customization can include branding, product appearance, packaging, manuals, plugs, and selected functional configurations.
The standard warranty period is one year for the whole machine. Coverage applies to product quality issues under normal use and excludes damage caused by improper use, unauthorized modification, accidents, natural disasters, and other external factors.
Yes. Its combination of 3D roller massage, multi-zone air compression, automatic programs, and adjustable controls makes it suitable for wellness facilities, offices, commercial relaxation areas, and other environments where massage equipment is used regularly.
