The ZHOUQI Intelligent 3D Massage Chair combines a 3D massage mechanism, SL-Track, automatic human body detection, air compression, heating, and adjustable reclining functions in one integrated system. Its electronic sensors help identify the user's body position, while multiple automatic and manual programs allow the massage experience to be adjusted for different preferences. The model is designed for home, office, hospitality, and other indoor wellness environments.
The main difference of this model is the combination of a 3D massage mechanism and automatic body detection. The four massage balls can move inward and outward to adjust contact depth, while the 130cm SL-Track follows the curved shape of the back for an extended massage path.
Before a massage program begins, the electronic sensing system identifies the user's body position and helps determine the appropriate massage area. This reduces the need for repeated manual positioning and allows the selected program to work according to the detected body profile.
The 3D mechanism uses four massage balls to provide inward and outward movement in addition to the selected massage techniques. The 130cm SL-Track extends the massage path along the back while following the natural curve of the chair.
The chair uses electronic sensors to detect the user's body position before massage. The detected information helps the system position the massage mechanism more accurately for different users.

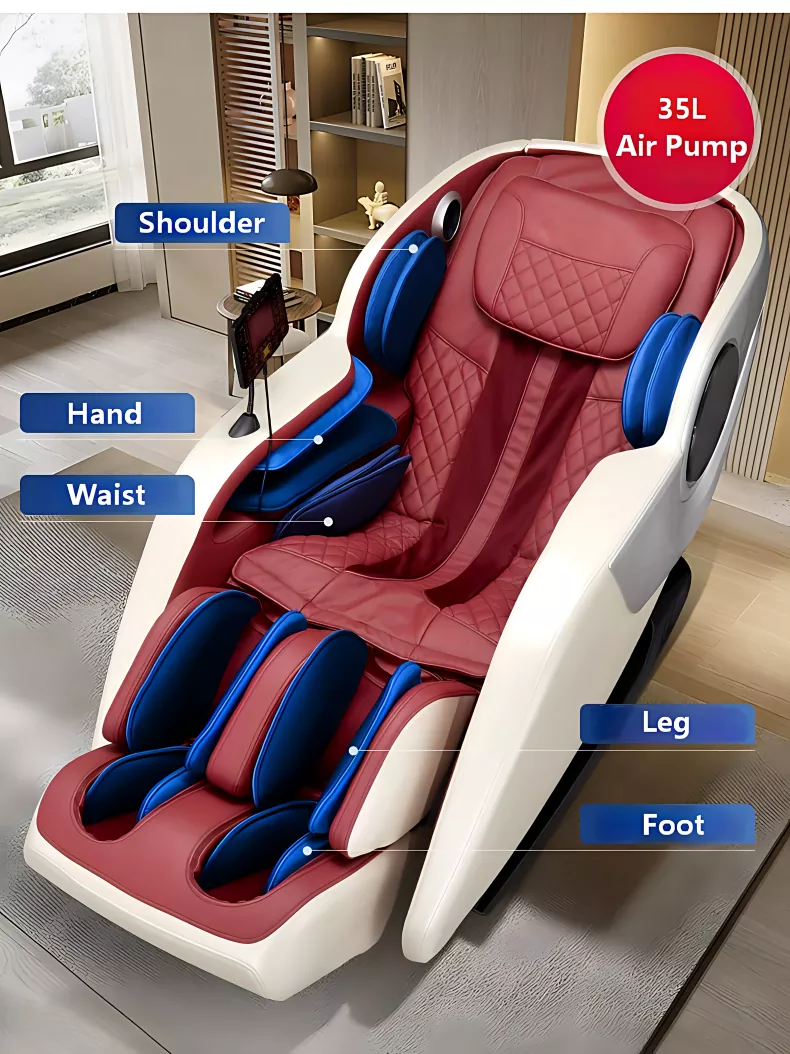

Air cells are distributed across the shoulders, arms, seat, legs, and feet. Different airbag zones can operate according to the selected program, with air compression working together with calf kneading and foot roller massage for lower-body coverage.
The electric reclining system supports a maximum back angle of 153°. The leg section can also be adjusted automatically between 11° and 99° from the vertical ground position, allowing users to select different reclining and leg positions during use.
The "0" space design allows the chair to slide to approximately 5cm from the wall. This configuration can help reduce the floor space required behind the chair and is suitable for rooms where installation space needs to be considered.
The chair uses a 7-inch LCD screen for program selection and control. A shortcut knob and buttons provide additional access to frequently used functions, while USB charging is integrated into the chair for user convenience.
The system provides 24 automatic massage modes covering different user preferences. Users can also access manual mode to adjust the massage program and save preferred settings through the Favorites function.

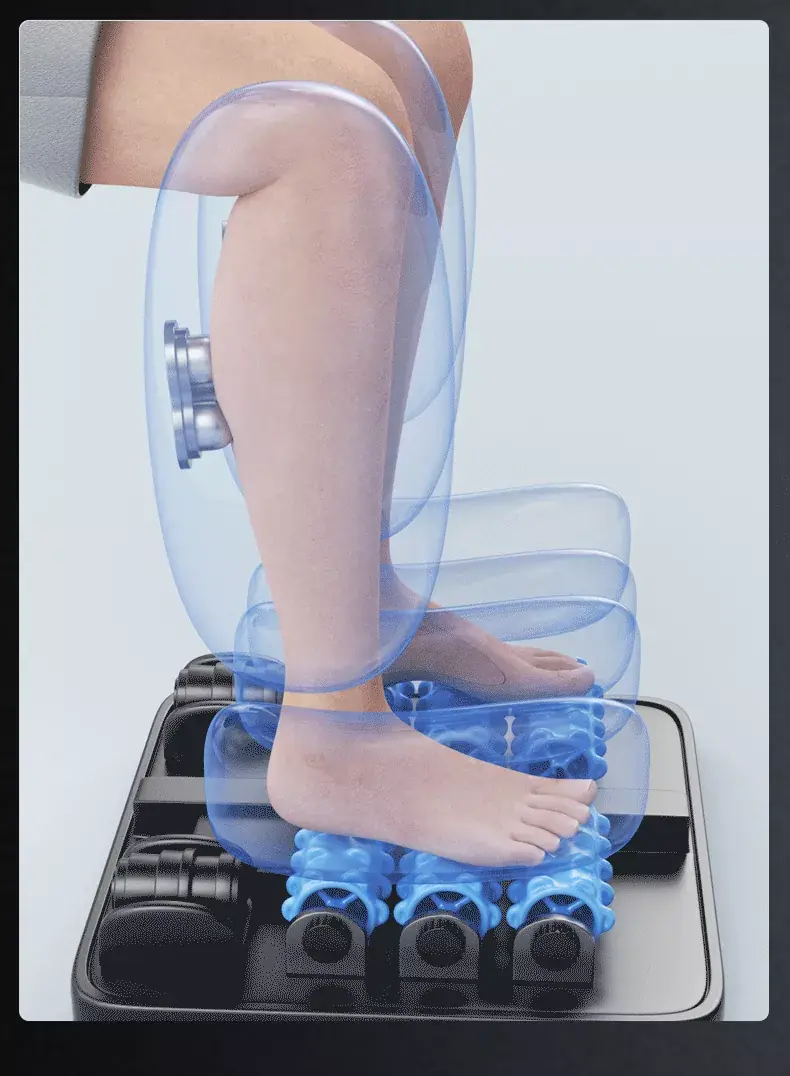

The lower-body section combines leg air-cell compression, calf kneading, and three-row foot rollers. The automatic leg lift function supports an adjustment range of 11° to 99°, allowing the leg position to be changed together with the reclining angle.
This configuration makes the lower-body system an important part of the overall product rather than treating foot and calf massage as an additional accessory. It combines pneumatic compression, mechanical kneading, and roller massage within the leg and foot section.
Heating elements are positioned at the waist and feet. The chair includes two heating units around the waist and four heating units in the foot section. Together with air compression and mechanical massage, these functions can be selected according to the massage program and user preference.
|
Configuration table |
|
|
Picture |

|
|
Name |
Intelligent 3D Massage Chair |
|
Item No. |
6700 |
|
Rail Type |
SL track, 130cm in length, fit the curve |
|
mechanism type |
3D massage mechanism (4 massage balls) |
|
FUNCTION DESCRIPTION |
|
|
Calf Massage |
Leg Air Cells Massage+Calf Kneading Massage |
|
Footrest Massage |
Three Rows of Roller Massage |
|
Leg Angle Adjustment |
Automatically Leg Lift Angle 11-99° （vertical ground） |
|
Zero Gravity |
Electric Adjustment Back Angle, maximum to 153° |
|
"0" Space |
Slip Against Wall 5CM |
|
Automatic Human Detection Function |
Accurately determine the position of the human body by electronic sensors |
|
Remote Control |
7" LCD SCREEN |
|
Short Cut |
Knob control+button |
|
Charge |
USB charging |
|
Surface Treatment |
Piano Baking Paint + PU leather |
|
Air Cells / QTY |
|
|
Shoulder Air Cells |
4 Pcs Shoulder Air Cells |
|
Armrest Air Cells |
8 Pcs Armrest Air Cells |
|
Seat Position Air Cells |
4 Pcs Seat Position Air Cells |
|
Leg Air Cells |
4 Pcs Leg Air Cells |
|
Foot Air Cells |
12 Pcs Leg Air Cells |
|
MASSAGE MODE |
|
|
Auto Mode |
24 Auto modes，suiting all sorts of different crowd, it have "FAVORITES" function, you can easily choose the program |
|
Manual Mode |
Quick manual mode, easily to set the OEM massage program which you want, and add to "FAVORITES", you can choose the same program in the "FAVORITES". |
|
HEATING FUNCTION |
|
|
Waist |
2 Pcs Hot Heating |
|
Foot |
4 Pcs Hot Heating |
|
POWER |
<3W |
|
Rated power |
150W |
|
Voltage |
AC110V/220V/240V |
|
Size (Upright) |
1600*800*1190mm |
|
Size (Recline) |
1800*800*900mm |
|
N.W. |
103KG |
|
Package One: 1 PCS/1 CTN |
1460*810*1200mm；G.W.: 118KG |
The combination of 3D massage, automatic body detection, zero-gravity reclining, and a 5cm wall clearance makes the chair suitable for living rooms, bedrooms, home offices, and private relaxation areas.
The multiple automatic programs, adjustable reclining system, foot and calf functions, and compact installation design can be used in hotel rooms, suites, resorts, and guest wellness areas.
The chair can be installed in executive offices, employee rest areas, corporate lounges, and other indoor spaces where users need an on-site relaxation option without requiring a dedicated treatment room.
The product can also be considered for selected spas, fitness clubs, beauty facilities, and other commercial wellness environments. Final suitability depends on the intended operating conditions and local product requirements.
ZHOUQI applies quality control procedures throughout component inspection, assembly, functional testing, and final inspection. These procedures are intended to maintain product consistency and verify the main mechanical and electrical functions before shipment.
The product is available with compliance documentation for applicable markets and configurations. According to the supplied product information, certifications and compliance references include CE, FDA, RoHS, ETL, CB, and KC, while the factory certifications include ISO9001, ISO13485, ISO14001, and ISO45001. Buyers should confirm the applicable certificates and registration documents for their specific market and order configuration.
ZHOUQI provides product documentation and technical assistance for operation, maintenance, and troubleshooting. Spare parts can also be supplied according to warranty conditions and service requirements.
During the warranty period, spare parts related to confirmed product quality defects are provided according to the agreed warranty terms. Damage caused by improper use, unauthorized modification or disassembly, natural disasters, war, or other external factors is excluded from standard warranty coverage.
The chair is packed as one unit per carton using protective export packaging. The supplied packaging specification is 1460*810*1200mm, with a stated gross weight of 118kg. Up to 44 units can be loaded into a 40HQ container according to the current packing configuration.
Most export shipments are transported by sea, with FOB Ningbo available as the quoted trade term. Final packing, loading, and shipping arrangements can be confirmed according to the order and destination.
Sample orders are available for buyers who need to evaluate the product configuration, appearance, massage functions, and operating experience before placing a larger order. One sample can be supplied according to the agreed project requirements.
The current sample production lead time is approximately 15–20 working days, subject to product configuration and production scheduling.
The standard warranty period is one year for the complete machine. Warranty coverage applies to product quality defects occurring under normal use and excludes damage caused by improper installation, unauthorized modification or disassembly, misuse, natural disasters, and other external factors.
ZHOUQI supports OEM and ODM projects for importers, distributors, retailers, and private-label brands. Depending on the project, customization may include branding, product appearance, selected functions, control interface, packaging, and other agreed specifications.
The typical development process includes requirement discussion, configuration and design confirmation, sample production and testing, sample approval, mass production, quality inspection, shipment, and after-sales support.
For projects requiring customized control interfaces, the available language options and other software-related requirements can be reviewed during the product development stage.
Yes. ZHOUQI supports OEM and ODM projects, including agreed branding, packaging, appearance, selected functions, and control interface requirements. The MOQ and customization scope should be confirmed according to the project specifications.
The control interface can support up to three languages in one UI according to the supplied product configuration. Available language combinations should be confirmed before production.
The current sample production lead time is approximately 15–20 working days, subject to configuration and production scheduling.
The standard warranty period is one year for the complete machine, subject to the agreed warranty terms and exclusions.
The stated production lead time for bulk orders is approximately 35–45 working days, depending on order quantity, configuration, and customization requirements. Production scheduling for urgent orders can be discussed before confirmation.
This model combines a 3D mechanism with automatic human body detection, 24 automatic programs, zero-gravity reclining, full-body air compression, three-row foot rollers, calf kneading, heating, and a space-saving installation design.
